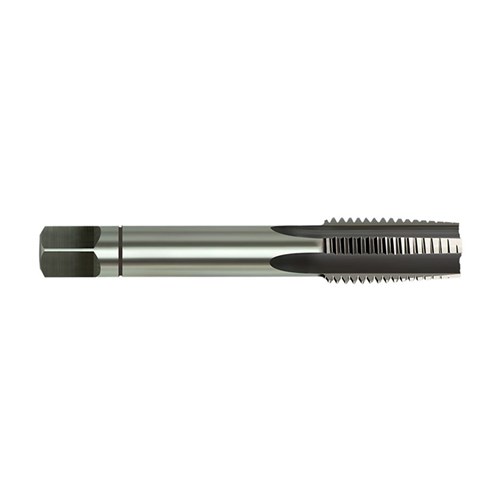

Carbon Tap UNC Taper-5Gx40

Product Code: UNCCT5G

Product Rating
Write A Review
Key Features
Precision manufactured in Europe to ISO529 standards
Suitable for hand and machine operation, and are suitable for production
2N Tolerance for optimum thread fit
Login to view pricing
Technical Specifications
Brand ALPHA
Subcategory UNC Carbon
Type of Measure UNC
Diameter (gauge) 5
Drill Size (mm) 2.6
Head Type Taper
Material Carbon
OAL (mm) 48
TPI 40
Barcode 9342386031294
Category UNC Carbon
Longest side (mm) 85.00
Median side (mm) 10.00
Shortest side (mm) 10.00
Weight (gr) 5.00
Box Quantity 1.00
Carton Quantity 1.00
Order Quantity 1
Unit Of Measure
Box: 1
Carton: 1
  • Alpha Carbon Hand Taps are precision manufactured in Europe to ISO529 standards.
  • Carbon Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.
  • 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.
  • Suitable for use in Steel, Aluminium, Copper, Brass etc.
  • Always use lubricant. Click here for our range.

TAPER taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes. Alpha Taper taps can be identified by the single ring on the shaft near the driving square.

  • Diameter: 5mm
  • Pitch: 40mm
  • Overall length: 40mm
  • Shaft Diameter: 3.5mm
  • Drive Square: 2.7mm
  • Tapping Drill Size: 2.60mm
