Versadrive Adapters

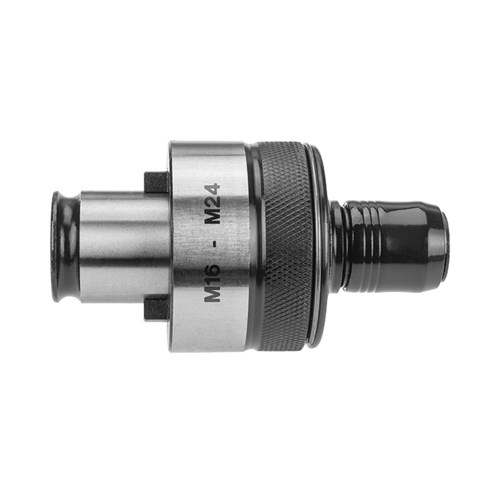

VersaDrive Clutched Tap Replacement Collet, M16-M24 Capacity

Product Code: 121015-M24

Product Rating
Write A Review
Key Features
The VersaDrive clutched tap collet system is a unique method of effectively threading blind holes.
All collets work with the full range of VersaDrive taps.
When the tap comes to the bottom of the hole, the clutch system will engage and stop the tap from breaking. The tap is then reversed out of the completed hole.
This system fits a 19.05mm (3/4) Mag-Based Drill Arbor, or can be adapted for use with a 1/2 or 3/4 impact wrench.
Quick change system accepts all VersaDrivetaps

Technical Specifications
Brand ALPHA
Series VersaDrive
Barcode 5060674926254
Category Versadrive Adapters
Longest side (mm) 14.00
Median side (mm) 6.00
Shortest side (mm) 6.00
Weight (gr) 703.00
Order Quantity 1

The VersaDrive™ clutched tap collet system is a unique method of effectively threading blind holes.

All collets work with the full range of VersaDrive™ taps.
When the tap comes to the bottom of the hole, the clutch system will engage and stop the tap from breaking. The tap is then reversed out of the completed hole.

This system fits a 19.05mm (3/4″) Mag-Based Drill Arbor, or can be adapted for use with a 1/2″ or 3/4″ impact wrench.

  • Quick change system accepts all VersaDrive™ taps
  • Collets are pre-set to the appropriate clutch settings
  • Further clutch adjustment options available
  • For blind hole tapping with VersaDrive™ Spiral Flute Taps
  • For use with variable speed, reversible mag-based drills, pedestal drills or impact wrenches

Available on request (lead times apply)


These books contain critical information for the best practice use for the Alpha VersaDrive products that will help you to get the greatest efficiencies out of these tools.

Alpha VersaDrive | Edition 23     Pocket Alpha VersaDrive Booklet 2022
