Versadrive Combi Drill Tap

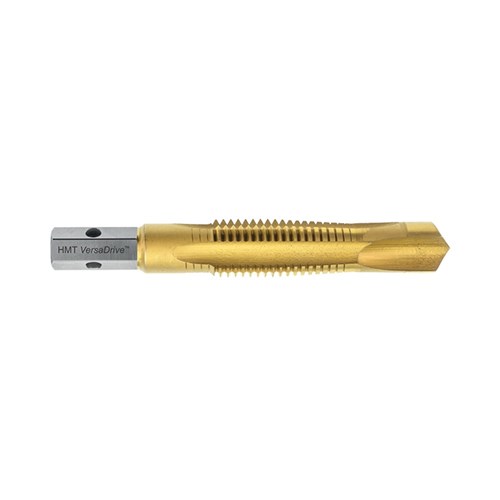

VersaDrive Heavy Duty Drill-Tap, M10 x 1.50

Product Code: 301130-0100

Product Rating
Write A Review
Key Features
The Heavy Duty VersaDrive ImpactaTaps® Drill Taps are an industrial metalwork and fabrication tool for drilling and tapping heavy steel in one easy operation.
Primarily designed to be used with a reversible mag-based drill, thought they can also be adapted for use with an impact wrench to enlarge and tap existing holes.
Specially hardened for impact wrench use (*check application Guide)
Drill point optimised for use in fixed drilling machines including mag-based drills and pedestal drills
Unique dual-point starting angle for easy alignment and fast cut

Technical Specifications
Brand ALPHA
Series VersaDrive
Type of Measure MC
Angle (deg) 135
Diameter (mm) 10
Diameter (in) 10
DoC (mm) 20
Flute Length (mm) 30
Material HSS
OAL (mm) 105
Pitch (mm) 1.5
Shank Size (mm) 11
Barcode 5060451524918
Category Versadrive Combi Drill Tap
Longest side (mm) 13.00
Median side (mm) 2.00
Shortest side (mm) 2.00
Weight (gr) 68.00
Order Quantity 1

The Heavy Duty ImpactaTaps® Drill Taps are an industrial metalwork and fabrication tool for drilling and tapping heavy steel in one easy operation.

Primarily designed to be used with a reversible mag-based drill, thought they can also be adapted for use with an impact wrench to enlarge and tap existing holes.

  • Specially hardened for impact wrench use (*check application Guide)
  • Drill point optimised for use in fixed drilling machines including mag-based drills and pedestal drills
  • Unique dual-point starting angle for easy alignment and fast cut
  • Fast tapping with minimal kick-back
  • Chipbreaker action for automatic chip clearance when impact tapping (check application guide)
  • High-grade tool steel for high accuracy and long life
  • Titanium nitride coating reduces heat and increases lubricity for extended life
  • High strength, non-slip shank design
